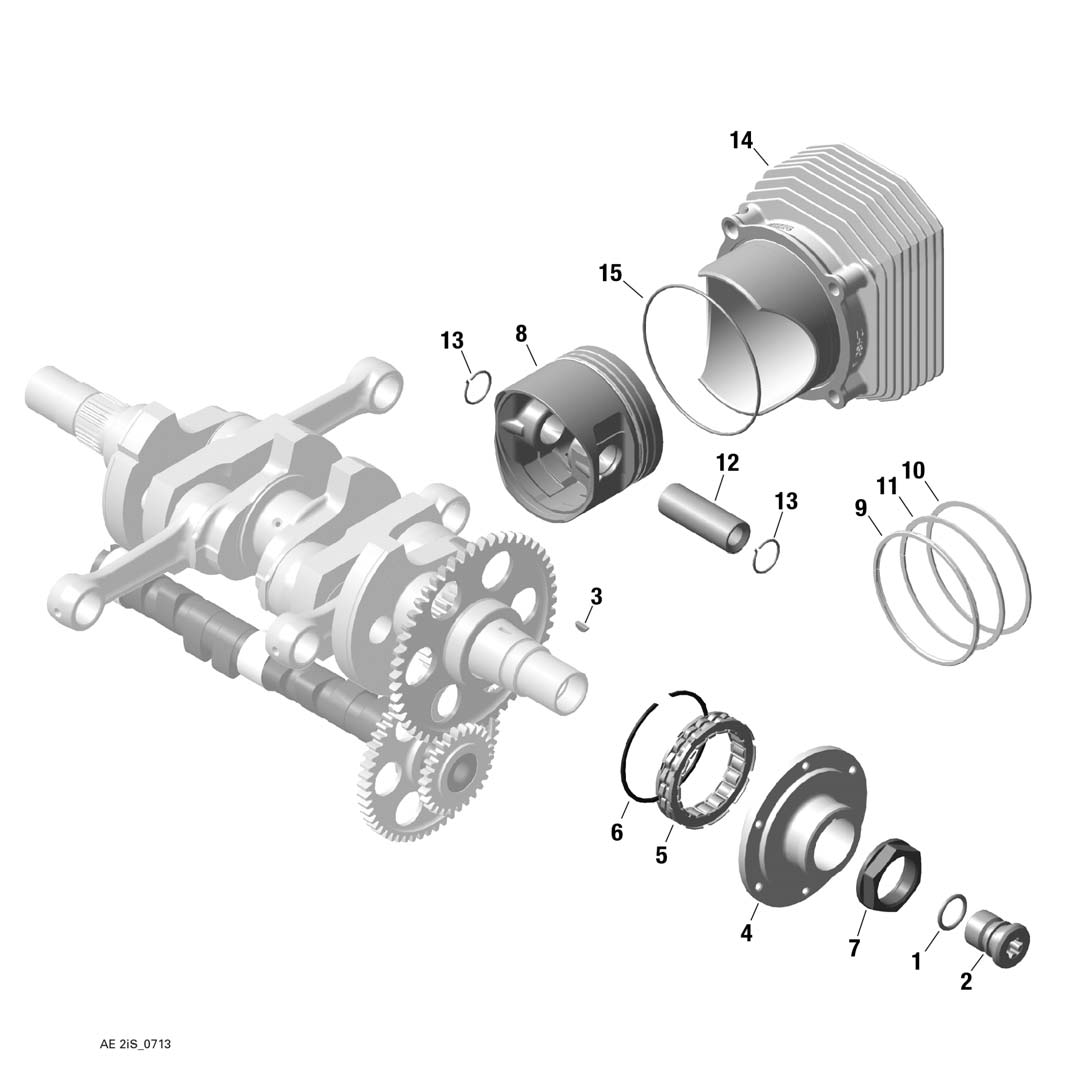

fig. 72-20-00-2
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 250057 | O-ring Din 3771-18x2,5-n, Fpm 75 | 900 | Add to Cart |
| 2 | 940520 | Plug Screw M22x1,5 | 128400 | Add to Cart |
| 3 | 246055 | Woodruff Key 3x3,7 Din 6888 | 3700 | Add to Cart |
| 4 | 852407 | Sprag Clutch Housing | 523000 | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 449000 | Add to Cart |
| 6 | 845425 | Circlip 70 | 10300 | Add to Cart |
| 7 | 942250 | Hex. Nut M32x1,5-lh | 140700 | Add to Cart |
| 8-10 | 888382 | 888 382 Use 888 382-1 Red Or 888 382-2 Green | 0 | Add to Cart |
| 9 | 815230 | Oil Scraper Ring | 87900 | Add to Cart |
| 10 | 815280 | Tapered Compression Ring | 59800 | Add to Cart |
| 11 | 815257 | Rectangular Ring 84/77x1,5 | 114200 | Add to Cart |
| 12 | 916356 | Piston Pin 20x12x55,3 | 253600 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 6400 | Add to Cart |
| 14 | 0 | Add to Cart | ||
| 15 | 250510 | O-ring 87x2 | 12100 | Add to Cart |
